AI Bar Path Analysis: How It Works
AI bar path analysis uses computer vision to track a barbell's movement during lifts like squats, bench presses, and deadlifts. By analyzing video footage from a smartphone, these tools provide instant feedback on technique, helping lifters improve efficiency, reduce injury risks, and optimize performance. Unlike older methods requiring expensive hardware or tedious manual video reviews, AI systems are faster, more accessible, and deliver actionable insights tailored to your body mechanics and goals.
Key Takeaways:
- What it does: Tracks barbell trajectory, velocity, and consistency.
- How it works: Smartphone videos are analyzed frame-by-frame using computer vision.
- Why it matters: Identifies technical issues like bar drift or common squat form mistakes that can lead to inefficiency or injury.
- Tools like CueForm AI: Offer personalized coaching cues, progress tracking, and instant feedback.
This technology simplifies strength training by turning complex data into practical advice, making it easier for lifters of all levels to refine their form and achieve better results.
How To Get Faster Bar Speed | Barbell Path Explained
How Traditional Bar Path Analysis Works
Before AI stepped in, analyzing a barbell's path was a cumbersome task that relied heavily on expensive equipment or tedious manual processes. These traditional methods, while effective in some settings, were riddled with limitations that made them impractical for most gym-goers or athletes.
Hardware-Based Analysis
One of the most accurate tools for tracking bar movement was the linear position transducer (LPT). This device uses a string attached to the barbell, which connects to a rotational encoder to measure displacement and velocity with precision. As Basilio Pueo from the University Institute for Computing Research explains:
"Linear position transducers (LPTs)... have been used for decades as the gold standard because of the direct measurement of linear displacement, high sampling rate capture (around 1000 Hz), and reliability" [5].
Despite their accuracy, LPTs come with a hefty price tag and practical limitations. They’re fragile, require careful handling, and restrict the range of motion during lifts. Pueo also notes that "LPTs are expensive equipment with moving rotating parts and delicate strings that need appropriate use and limit the range of motion lifts" [5].
Other high-tech solutions, like 3D motion capture systems, use multiple infrared cameras to track reflective markers. However, these setups are typically confined to research labs due to their complexity and cost [7]. Similarly, wireless IMUs (inertial measurement units) provide an alternative but rely on time integration to estimate displacement, which introduces significant errors, especially during slower movements [5].
These drawbacks made it clear that a more accessible and efficient method was needed.
Manual Video Analysis
For those without access to expensive hardware, manual video analysis became a go-to option. Apps like WL Analysis and Iron Path allow users to track the barbell’s position frame by frame [3]. While this approach is more affordable, it brings its own set of challenges.
First, the camera setup is critical. To avoid perspective errors, the camera must be positioned at waist height and directly perpendicular to the barbell [3]. Even a slight misalignment can skew results.
Second, manual analysis is both time-consuming and prone to human error. Users have to carefully select video frames and analyze them, which not only delays feedback but can also overwhelm lifters with too much data, making it harder to apply corrections [2] [5].
These hurdles - whether technical, logistical, or financial - highlight why traditional methods fell short for most lifters and paved the way for AI-driven solutions.
How AI Bar Path Analysis Works
AI vs Traditional Bar Path Analysis: Features, Cost, and Performance Comparison
AI has revolutionized bar path analysis, making it faster, more accessible, and far more efficient than traditional manual or hardware-dependent methods. Gone are the days of relying on pricey sensors or spending hours dissecting video footage. With modern AI tools, a simple smartphone video can be analyzed in seconds, delivering instant, actionable insights. Platforms like CueForm AI are taking full advantage of this leap forward, offering real-time, tailored coaching to athletes.
The core of this technology lies in computer vision, which processes workout videos frame by frame. It identifies the barbell and maps its trajectory, while also tracking key body landmarks to understand how biomechanics influence the bar's movement [5]. By analyzing vast datasets, these systems can identify optimal movement patterns. High-speed smartphone cameras, capable of recording at 120–240 fps, provide enough detail for professional-grade kinematic analysis [5]. To ensure accuracy, data smoothing techniques like moving averages and temporal filters are used to minimize noise caused by frame drops or detection errors. This results in precise and stable metrics for bar velocity and path.

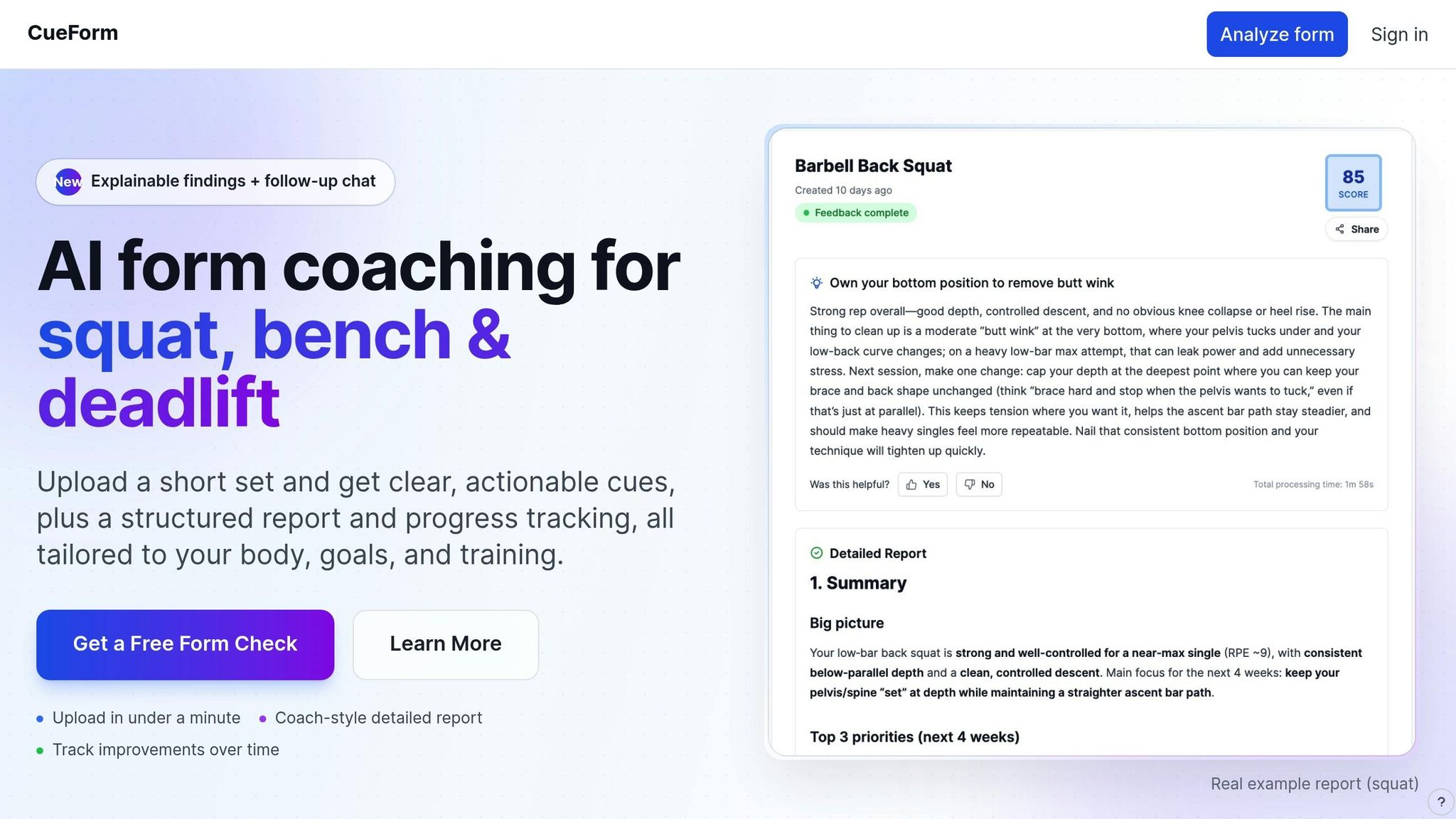

How CueForm AI Works
CueForm AI builds on these technological advancements, tailoring its approach specifically for strength training. It focuses on the three core lifts: squats, bench presses, and deadlifts. The process is straightforward: you upload or record a video of your lift using your smartphone. The AI then detects the barbell's position throughout the movement, evaluates the consistency of your bar path across reps, and factors in your training goals and body mechanics to generate personalized coaching cues [1].
What sets CueForm apart is its ability to transform raw data into meaningful, actionable advice. Unlike apps that simply show a visual trace of the bar’s movement, CueForm provides clear, next-step guidance - explaining what adjustments to make, why they matter, and how the changes should feel [1]. As CueForm explains:
"We turn your video into cues you can use next session - grounded in bar path, positions, and the context you provide" [1].
The platform’s "Explainable Findings" section highlights key issues, supported by detailed metrics, making the feedback transparent and easy to understand. If you need more clarity, you can chat directly with the AI coach to refine the suggestions based on your specific needs.
For optimal results, position your smartphone at waist height, perpendicular to the barbell, in a well-lit space free from mirror reflections. Ensure your entire body is visible in the frame. Using a moderate load - around 70–85% of your one-rep max - helps capture a technique that reflects your typical performance [3].
Benefits of AI Over Traditional Methods
AI brings several clear advantages over traditional methods, addressing the time and cost challenges of manual analysis and specialized hardware. No extra equipment is needed - unlike linear position transducers, which can cost between $399 and $1,500 and often require additional software subscriptions [9]. AI processes videos in seconds, providing detailed insights that go beyond bar path, incorporating joint angles, tempo, and range of motion.
The results speak for themselves. For example, Tonal users report an average form improvement of 10% after just 10 sets, increasing to 34% after 200 sets. Less experienced lifters see even greater gains, with improvements averaging 47% after 200 sets [8]. Additionally, AI tools can save coaches significant time, automating video reviews and freeing up 7 to 12 hours per week [10].
| Feature | Traditional Manual Analysis | AI Bar Path Analysis |
|---|---|---|
| Setup Time | High (Manual drawing/tracking) | Low (Instant upload/recording) |
| Hardware | Video camera + software | Smartphone only |
| Feedback Speed | Delayed (Post-workout) | Instant or near-instant |
| Data Depth | Limited to visual path | Path, velocity, range of motion, and joint angles |
| Personalization | Subjective to coach | Data-driven based on your anatomy |
| Cost | Time-intensive | $0–$10/month |
This shift from manual or hardware-heavy methods to AI-powered analysis has made high-quality movement insights accessible to everyone. Lifters at all levels can now fine-tune their technique with precision that was once only available to elite athletes.
Key Metrics in AI Bar Path Analysis
AI takes your lifting technique and turns it into precise data, helping you identify both strengths and areas for improvement. By understanding these metrics, you can replace guesswork with actionable insights.
Path Deviation and Horizontal Displacement
Path deviation measures how far the bar moves away from an ideal reference line during a lift. For lifts like squats and deadlifts, AI monitors horizontal displacement, ensuring the bar stays over your midfoot - crucial for generating maximum force. If the bar drifts forward by even a few centimeters, it might indicate issues like a collapsing trunk or shifting weight [2].
Studies reveal that AI video-based systems are highly accurate, with a displacement bias of less than 0.8 inches when compared to gold-standard 3D motion capture [11]. In Olympic lifts like the clean, these metrics become more detailed, tracking rearward bar movement and the distance it loops to the catch position. Data shows that 76% of successful cleans involve rearward displacement, while failed attempts often show no horizontal shift or a forward catch [4]. As Loek Vossen, a Human Movement Scientist at GymAware, explains:
"A bar path is like a strength test for technique" [4].
These displacement insights lay the foundation for analyzing bar speed and consistency across repetitions.
Velocity and Consistency Metrics
Velocity metrics focus on how fast and powerful your lift is. Mean velocity measures the average speed during the lifting phase, while peak velocity captures the maximum speed, often occurring right after you push through the sticking point [12]. Advanced systems also measure propulsive velocity (ignoring deceleration) and working phase velocity (excluding "float" time) [12].
Consistency metrics evaluate how closely each rep matches previous ones in the set. High consistency suggests solid technique, while noticeable variability could signal fatigue or a breakdown in form [2] [10]. AI systems provide a visual comparison by overlaying your current rep (a solid line) against earlier reps (faded lines). If these lines start to diverge, it might be a sign to reduce the weight or end the set to avoid compromising your technique.
Computer vision systems tracking barbell velocity have shown strong correlations (r = 0.67–0.95) with 3D motion capture, and their average velocity bias is less than 0.06 m/s [11].
Comparison Table: Optimal vs. Suboptimal Bar Paths
Different exercises require distinct bar paths, and what works for one lift might not work for another. AI helps distinguish between effective movement patterns and technical flaws:
| Exercise | Optimal Bar Path | Suboptimal Bar Path |
|---|---|---|
| Back Squat | Vertical line staying over the midfoot throughout the movement [2]. | Forward drift toward toes; shaky or meandering line indicating lack of control [2] [3]. |
| Bench Press | Slight arc; bar moves from the mid-chest back toward the shoulders [2] [4]. | Perfectly vertical path, which can increase shoulder strain and range of motion [3]. |
| Deadlift | Near-perfect vertical line; bar stays close to the shins and thighs [2]. | Bar swings away from the body, creating a "rowing" motion [3]. |
| Clean | Tight S-curve with initial rearward movement; catch occurs within 8 inches of the most forward point [4]. | Catching the bar in front of the starting position, often involving "hipping" the bar forward [4]. |
| Snatch | Smooth S-curve following an "away-toward-away-toward" pattern; bar moves slightly toward the body after passing the knees [2] [4]. | Excessive forward loop caused by hip drive, pulling the bar away from a vertical path [2]. |
Top athletes demonstrate how critical these patterns are. At World Championships, 53% of top-three finishers use the "Type 3" snatch bar path (the away-toward-away-toward pattern), while 59% of Pan-American finalists rely on the same technique [4]. These statistics highlight how optimal bar paths often separate successful lifts from failed attempts.
sbb-itb-c91a623
How AI Bar Path Analysis Applies to Strength Training
AI brings a new level of precision to strength training by tailoring feedback to the unique mechanics of each lift. This level of detail is essential for improving performance and addressing specific technical challenges.
Bar Path Analysis for Different Exercises
AI’s advanced tracking capabilities allow it to analyze the mechanics of various lifts with remarkable accuracy. For exercises like squats and deadlifts, the focus is on maintaining a vertical bar path that stays balanced over the midfoot. If the bar drifts forward by even a few inches, it could indicate issues such as rapid hip rise or a collapsing trunk[3]. On the other hand, the bench press requires a different approach - a curved "J-curve" trajectory. A strictly vertical path might seem logical but often increases shoulder strain and range of motion, making the lift less efficient. Elite lifters typically push the bar back over their shoulders as quickly as possible to maximize leverage[3].
Olympic lifts, like the snatch and clean, involve even more intricate bar paths. For example, the snatch follows an S-curve pattern - moving "away-toward-away-toward" - while the clean starts with a rearward pull and ends with the bar caught within about 8 inches of its furthest forward point[4]. Research highlights that 53–59% of top finishers in World Championships use the "Type 3" snatch bar path, emphasizing the importance of these precise movement patterns[4].
This level of tracking allows AI systems to pinpoint technical problems with incredible speed and accuracy. For instance, one AI-powered squat coaching tool achieved F1 accuracy scores between 90.74% and 100% when identifying specific movement issues. It can even diagnose problems in under 0.5 seconds[6].
Getting Personalized Feedback With CueForm AI
CueForm AI takes feedback to the next level by considering your anatomy, training goals, and injury history before analyzing your lift. This personalized approach ensures that the advice you receive is tailored to your unique needs, rather than offering generic recommendations[1].
Here’s how it works: first, select your lift - whether it’s a squat, bench press, or deadlift. Then, upload a video of your performance, provide context about your body and goals, and receive actionable cues. Instead of overwhelming you with raw data, CueForm delivers practical coaching tips like "drive knees forward" or "chest up", which you can implement immediately in your next session[1]. Additionally, the platform tracks your technique scores and the weight you’re lifting over time, helping you measure progress.
For the most accurate feedback, it’s best to film your lifts at 70–85% of your one-rep max (1RM)[3].
If any of the AI’s feedback feels unclear, the chat feature allows you to ask follow-up questions. For example, you can inquire about what specific cues should feel like, bridging the gap between the visual data you see and the physical adjustments you need to make[1].
How to Improve Bar Path With AI Feedback
Getting feedback from AI is just the first step. The real game-changer is using that feedback to elevate your performance. CueForm AI turns complex metrics into clear, actionable advice - like "drive knees forward" or "keep chest up" - that you can apply right away. If something doesn’t make sense, you can always ask for clarification using the AI chat feature.
Step-by-Step Guide to Using CueForm AI
- Choose your lift: Select from squat, bench press, or deadlift, and upload a video. Make sure your video setup follows the earlier guidelines for the best results.
- Add context: Include details about your goals, body mechanics, and training plan to get feedback tailored to your needs.
- Review your report: Check out the breakdown of key metrics, what needs improvement, and specific cues to apply in your next session. The report also highlights common causes of errors.
- Refine with chat: Use the AI chat to clarify any points or explore alternative cues that might work better for you.
- Track progress: Keep an eye on your technique score and the weight you’re lifting using the progress tracking dashboard to see how your bar path improves over time.
By following these steps, you’ll be able to consistently refine your technique and optimize your lifts.
CueForm AI Plans Comparison
| Feature | Free Plan | Starter Plan |
|---|---|---|
| Price | $0 | $10/month or $89/year |
| Quick Form Checks | Unlimited | Unlimited |
| Detailed Reports | Pay per report | Unlimited |
| AI Coach Chat | Limited quota | Extended quota |
| Findings & Metrics | Included | Included |
| Progress Tracking | Technique score & load | Technique score & load |
| Goal Tracking | Included | Included |
The Free plan is perfect for quick feedback during regular training sessions. For more in-depth guidance, the Starter plan ($10/month or $89/year, saving about 26%) offers unlimited detailed reports and more chat access, making it ideal for fine-tuning your technique over multiple training cycles.
Conclusion
AI bar path analysis takes strength training to a whole new level, turning guesswork into precise, data-driven feedback. Instead of relying on gut feelings or external spotters, you get frame-by-frame insights that pinpoint errors and offer actionable corrections.
This process goes beyond simply collecting data - it translates complex biomechanics into coaching cues that make sense for your body. CueForm AI simplifies this by delivering personalized guidance instead of just plotting a line on a graph. It bridges the gap between what you feel during a lift and the technical execution you’re aiming for.
Whether your goal is injury prevention - like catching early signs of spinal flexion - or boosting performance by perfecting bar path consistency, AI analysis equips you with the tools to see real progress. Research even backs this up: visual bar path feedback has been shown to improve technique and increase peak force and power in as little as four weeks [4]. And with the growing accessibility of AI tools, this technology is now within reach for everyday training.
The free plan provides unlimited quick feedback during your workouts, while the Starter plan ($10/month or $89/year, saving 26%) unlocks detailed reports and extended AI chat access [1]. All you need is your smartphone and the drive to improve - no costly equipment required.
Bar path analysis is here to help lifters of all levels master the Big 3, train smarter, reduce injury risks, and build strength faster.
FAQs
How can AI bar path analysis help improve my lifting technique?
AI bar path analysis takes your lifting to the next level by tracking how the barbell moves during key exercises like squats, bench presses, and deadlifts. By analyzing video recordings, the AI maps the bar's trajectory and compares it to the ideal path for better efficiency and safety. It spots issues, like a forward drift during a squat, and offers specific feedback to address them.
This system provides tailored tips, such as "keep the bar closer to your body" or "adjust your elbow angle", to help you fine-tune your technique. With instant feedback and visual overlays showing your progress, you can make real-time adjustments, boost your performance, and lower your injury risk - all without needing a coach right there with you.
What makes AI better than traditional methods for analyzing bar paths?
AI-driven bar path analysis brings a range of benefits that set it apart from traditional approaches. By leveraging advanced computer vision, it can automatically detect specific exercises, monitor key joint movements, and accurately trace the bar’s path. This removes the possibility of human error and ensures consistent, objective results every time.
One standout feature is the ability to provide personalized, actionable feedback within moments of uploading a video. This means lifters can adjust their form during the same workout, improving performance and minimizing the chance of injury. Unlike traditional methods, which often depend on in-person coaching, AI offers a scalable solution accessible to everyone - from beginners to seasoned athletes. Even better, it doesn’t require any specialized equipment or manual measurements, making it incredibly user-friendly.
With its blend of speed, precision, and ease of use, AI is revolutionizing bar path analysis, turning it into an invaluable tool for strength training.
How does CueForm AI analyze your bar path and provide personalized feedback?
CueForm AI leverages cutting-edge technology to break down your exercise videos, focusing on movements like squats, bench presses, and deadlifts. All you have to do is upload a video from the ideal angle, and the AI takes it from there, analyzing key elements like bar path, joint angles, and overall technique.
What sets CueForm apart is its ability to factor in your unique body mechanics, training objectives, and schedule. Based on this, it provides customized tips designed to enhance your performance while minimizing injury risk. This tailored feedback ensures your strength training sessions are not only more effective but also safer.
